Entity Reference Diagrams

Objectives

• Draw entity relationship diagrams with crow's foot notation for ideas for Android apps
• Describe how tables relate to each other using foreign keys
• Explain the different relationship types – 1:1, 1:many, many:many

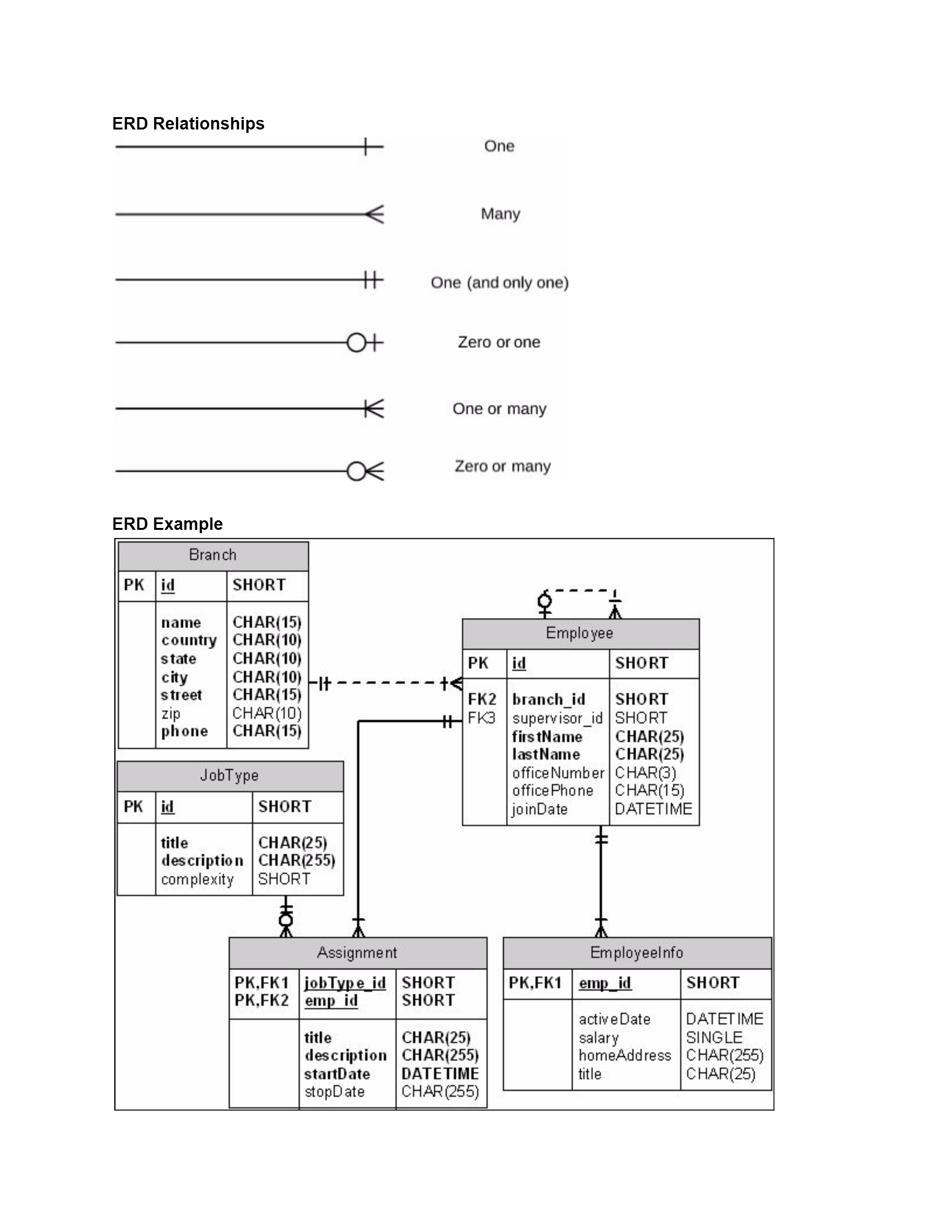

ERD Relationship Reference

Lab Deck

• Tables to Model
